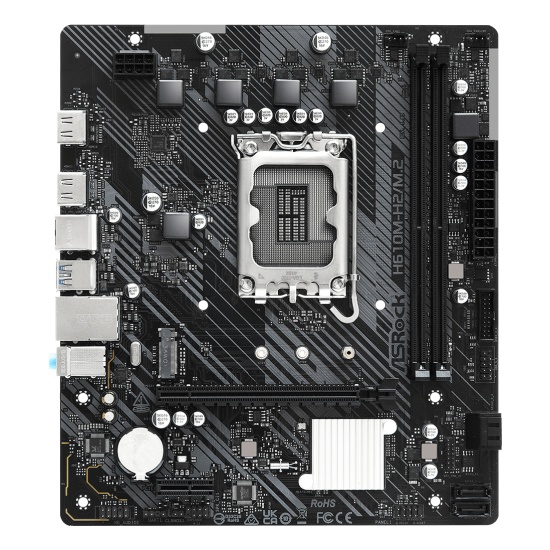

Asrock H610M-H2/M.2 Intel H610 LGA 1700 micro ATX by ASRock
- Be the first to review
- Item Number: FD3470451
- Part Number: 90-MXBP70-A0UAYZ
|
Expected to ship within 7 days of order Shipping within Ireland only € 4.99 -or spend €100.00 to get free shipping |
Key Features
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 3+1+1 Phase Power Design
- 2 x DDR4 DIMMs
- Supports Dual Channel, up to 3200
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
See product description
Similar Products
-
MSI MPG X670E Carbon AMD X670 Socket AM5 ATX DDR5 Motherboard
IN STOCK
€ 441.70 (incl. VAT) -
ASUS PRIME B550M-A AMD B550 Socket AM4 Micro ATX DDR4-SDRAM Motherboard
IN STOCK
€ 131.10 (incl. VAT) -
Asrock LiveMixer Intel Z790 LGA 1700 ATX DDR5-SDRAM Motherboard
IN STOCK
€ 250.12 (incl. VAT) -
Asrock B550M-ITX/AC AMD AM4 Mini ITX DDR4-SDRAM Motherboard
IN STOCK
€ 142.61 (incl. VAT) -
Gigabyte AMD B550I Aorus Pro AX AM4 Mini ITX DDR4-SDRAM Motherboard
IN STOCK
€ 183.51 (incl. VAT) -
ASUS PRIME H610M-A D4-CSM LGA 1700 Micro ATX DDR4 Motherboard
IN STOCK
€ 98.56 (incl. VAT) -
Asus Prime H610M-E D4-CSM Intel LGA 1700 Micro ATX DDR4 Motherboard
IN STOCK
€ 111.59 (incl. VAT) -
ASRock B550 Phantom Gaming AMD Socket AM4 Mini ITX DDR4-SDRAM Motherboard
IN STOCK
€ 210.92 (incl. VAT) -
ASUS ROG STRIX Z690-E Gaming Wifi Intel LGA 1700 ATX DDR5 Motherboard
IN STOCK
€ 356.84 (incl. VAT) -
Asus Prime Z790-P Intel Z790 LGA 1700 ATX DDR5-SDRAM Motherboard
IN STOCK
€ 258.41 (incl. VAT) -
MSI AMD A520M-A Pro Micro ATX DDR4-SDRAM Motherboard
IN STOCK
€ 68.71 (incl. VAT) -
Gigabyte A520I AC AMD A520 Socket AM4 Mini ITX DDR4-SDRAM Motherboard
IN STOCK
€ 123.75 (incl. VAT) -
ASRock B450M Pro4 R2.0 AMD Socket AM4 Micro ATX Motherboard
IN STOCK
€ 79.20 (incl. VAT) -
ASRock Z790M-ITX WIFI Intel Z790 Socket 1700 DDR5 Mini-ITX Motherboard
IN STOCK
€ 279.79 (incl. VAT) -
ASUS TUF GAMING B550M PLUS AMD B550 Socket AM4 Micro ATX DDR4-SDRAM Motherboard
IN STOCK
€ 199.87 (incl. VAT)
Details
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- step1: Install Auto Driver Installer
- step2: Update drivers needed
- step3: Done!
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Specifications
| FORM FACTOR | micro ATX |
| SOCKET TYPE | LGA 1700 |
| COMPATIBLE PROCESSORS | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen |
| CHIPSET | Intel |
| MEMORY STANDARD | DDR4-SDRAM |
| MEMORY SLOTS | 2 |
| MEMORY CHANNELS | Dual-channel |
| MAXIMUM INTERNAL MEMORY | 64 GB |
| PORTS | 4 |
| ETHERNET | Yes |
| ONBOARD USB 2.0 | 1 |
| ONBOARD USB 3.1 | 1 |
| M.2 SLOTS | M.2, SATA III |
| SATA III CONNECTORS | 4 |
| FRONT PANEL AUDIO | Yes |
| MAIN POWER CONNECTOR | Yes |
| CPU FAN CONNECTOR | Yes |
| CHASSIS FAN CONNECTORS | 1 |
| TPM | Yes |
| AUDIO CHIPSET | Realtek ALC897 |
| AUDIO CHANNELS | 7.1 channels |
| PCI EXPRESS X1 | 1 |
| PCI EXPRESS X16 | 1 |
| SUPPORTED OPERATING SYSTEMS | Windows 10 x64, Windows 11 x64 |
| WIFI | No |
| CHASSIS INTRUSION CONNECTOR | Yes |
| DIMENSIONS | 220 mm |
