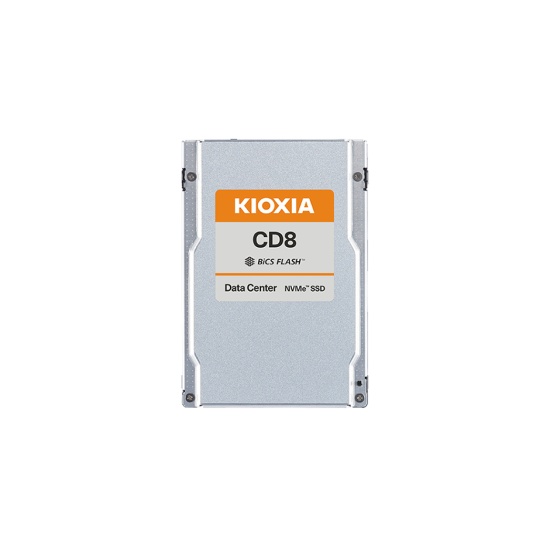

Kioxia CD8-R 3.84 TB 2.5" PCI Express 4.0 NVMe BiCS FLASH TLC by Kioxia
- Be the first to review
- Item Number: FD3528490
- Part Number: KCD8XRUG3T84
Key Features
- PCIe® 4.0, NVMe™ 1.4 specification compliant Help Modal Window
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15mm height Help Modal Window
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC Help Modal Window
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
See product description
Similar Products
-
250GB Western Digital Blue SA510 M.2 Serial ATA III Internal Solid State Drive
IN STOCK
€ 72.28 (incl. VAT) -
250GB Kingston Technology A2000 M.2 PCI Express 3.0 3D NAND NVMe Internal Solid State Drive
IN STOCK
€ 58.83 (incl. VAT) -
2TB Western Digital WD Green 2.5-inch SATA III SLC Internal SSD
IN STOCK
€ 323.23 (incl. VAT) -
500GB Western Digital Blue SA510 M.2 Serial ATA III Internal Solid State Drive
IN STOCK
€ 84.39 (incl. VAT) -
1TB Kingston KC600 2.5-inch Serial ATA III Internal Solid State Drive
IN STOCK
€ 175.06 (incl. VAT) -
500GB Western Digital Blue 2.5 Inch Serial ATA III Internal Solid State Drive
IN STOCK
€ 87.53 (incl. VAT) -
500GB Transcend M.2 2280 PCIe Gen4 x4 NVMe SSD 240S
IN STOCK
€ 62.29 (incl. VAT) -
1TB OWC Mercury Electra 3G 2.5" Serial-ATA 7mm Solid State Drive
IN STOCK
€ 108.32 (incl. VAT) -
128GB KingSpec 1.8-inch SATA III 6Gbps SSD Solid State Disk (JMicron JMF608 Controller)
IN STOCK
€ 51.17 (incl. VAT) -
2TB Samsung 2.5-inch Serial ATA III V-NAND MLC Internal Solid State Drive
IN STOCK
€ 254.00 (incl. VAT) -
1TB Samsung 870 EVO 2.5-Inch Internal Solid State Drive
IN STOCK
€ 151.98 (incl. VAT) -
512GB KingSpec M.2 NGFF NVMe 80mm SSD Solid State Disk
IN STOCK
€ 35.82 (incl. VAT) -
480GB OWC Aura 6G Solid State Drive for 2012-2013 iMac with DIY Toolkit
IN STOCK
-
240GB Transcend JetDrive 850 Thunderbolt PCIe SSD Upgrade for Mac
IN STOCK
€ 126.08 (incl. VAT) -
4TB Samsung 870 EVO 2.5-Inch Internal Solid State Drive - Black
IN STOCK
€ 497.63 (incl. VAT)
Details
Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Specifications
| CAPACITY | 3.84 TB |
| INTERFACE TYPE | PCI Express 4.0 |
| FORM FACTOR | 2.5" |
| DATA TRANSFER RATES | 7200 MB/s |
| RANDOM READ (4K) IOPS | 7200 MB/s |
| RANDOM WRITE (4K) IOPS | 3800 MB/s |
| FLASH STORAGE DETAILS | BiCS FLASH TLC |
| OPERATING TEMPERATURE | 0 - 74 °C |
| MTBF | 2500000 h |
| DIMENSIONS | 69.8 mm |
| WEIGHT | 130 g |
