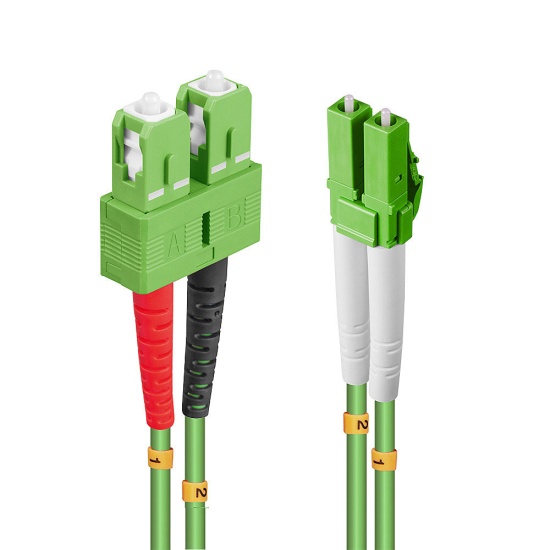

Lindy 46320 InfiniBand/fibre optic cable 1 m 2x LC 2x SC Green by Lindy

Connectors

• Connector A: LC Male
• Connector B: SC Male
• Housing Material: Plastic (PBT)
• Connector Plating: -
• Pin Construction: -
• Pin Plating: -
• Dimensions (approx.) WxDxH:
  • A: 12.5x21.5x10.5mm (0.49x0.85x0.41in)
  • B: 25x28x9.9mm (0.98x1.10x0.39in)

Cable Construction

• Length: 1m (3.28ft)
• Standard: OM5
• Colour: lime green
• Type: Round
• Jacket Diameter: 4.0mm (0.16in) x 2
• Jacket Material: LSZH
• Conductor Material: Fiber
• Conductor Gauge: 50/125µm
• Shielding: -

Specifications

• Supported Bandwidth: 100Gbps
• Maximum Resolution: -
• Nominal Attenuation:
  • < 2.4db@850nm
  • < 1.7db@953nm
  • < 0.6db@1300nm
• Minimum Band Radius: 7.5mm (0.29in)
• Operating Temperature: -40°C - 85°C (-40°F - 185°F)
• Storage Temperature: -40°C - 85°C (-40°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL

Purchasing Information

• No.: 46320
• EAN: 4002888463201

This product is also available in other lengths

• 46320 - 1m (3.28ft)
• 46321 - 2m (6.56ft)
• 46322 - 3m (9.84ft)
• 46323 - 5m (16.44ft)
• 46324 - 10m (32.81ft)
• 46325 - 15m (49.21ft)
• 46326 - 20m (65.62ft)
