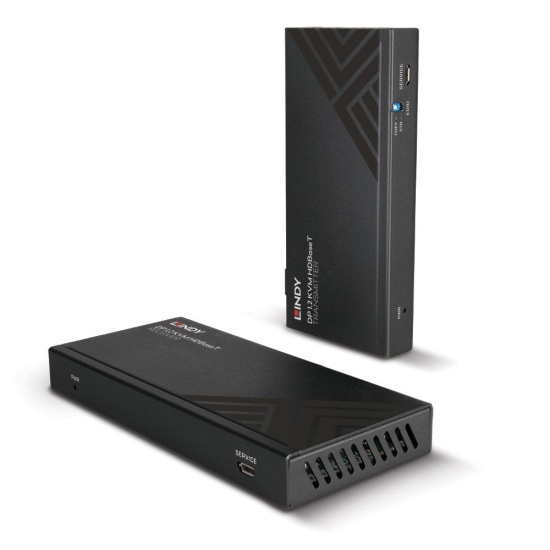

Lindy 150m Cat.6 DisplayPort 1.2, USB, IR and RS-232 HDBaseT KVM Extender by Lindy
- Be the first to review
- Item Number: FD3542299
- Part Number: 39385
|
Expected to ship within 11 days of order Free shipping within Ireland! |
Key Features
- Extends DisplayPort signals up to 150m distances over Cat.6 network cable via HDBaseT technology
- Supports resolutions up to 4K@60Hz 4:4:4
- USB ports for mouse and keyboard connection
- Bi-directional IR and RS-232 control and PoC (Power over Cable) function
- 2 year warranty
Similar Products
-
Tripp Lite Net Commander PS2 Server Interface Unit
IN STOCK
€ 106.74 (incl. VAT) -
Tripp Lite Cat5e KVM Console Extender Kit
IN STOCK
€ 292.95 (incl. VAT) -
Black Box KVM Extender Transmitter Receiver
IN STOCK
€ 2,859.89 (incl. VAT) -
Black Box 4-Port Rack Accessory Mounting Kit
IN STOCK
€ 51.44 (incl. VAT)
Details
Specifications
- AV Interface: DisplayPort
- Interface Standard: DisplayPort 1.2, USB 1.1
- Supported Bandwidth: 21.6Gbps
- Maximum Distance: 150m (492.12ft)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID Pass Through: Dip Switch with copy function
- Supported Audio: Pass Through
- Separate Audio Ports: -
- IR Support: 20 - 60KHz
- CEC Support: -
- Serial Interface: RS-232 Pass Through
- Transmission Protocol: HDBaseT
- Transmission Medium: Cat.6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: VS010-A0
- Special Features: Bi-directional IR, RS-232 and PoC
Connectors
- Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)
- Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
- Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
- Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)
- Bi-directional Ports: RS-232 3-Pin Terminal Block
- Power: 5.5/2.1mm
Physical Properties
- Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in) each unit
- Housing Material: Metal
- Net Weight: 0.8kg (1.76lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 24VDC 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 245x75x185mm (9.65x2.95x7.28in)
- Gross Weight: 1.02kg (2.25lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents
- HDBaseT DP KVM Extender, Transmitter
- HDBaseT DP KVM Extender, Receiver
- USB 2.0 Type A to Type B cable, 1.5m
- IR Emitter Cable, 1.5m
- IR Receiver Cable, 1.5m
- 4 x Mounting Ears & 8 x Screws
- 2 x 3-Pin Terminal Block
- Multi-country Power Supply (UK, EU, US & AUS)
- Lindy Manual
Purchasing Information
- No.: 39385
- EAN: 4002888393850
