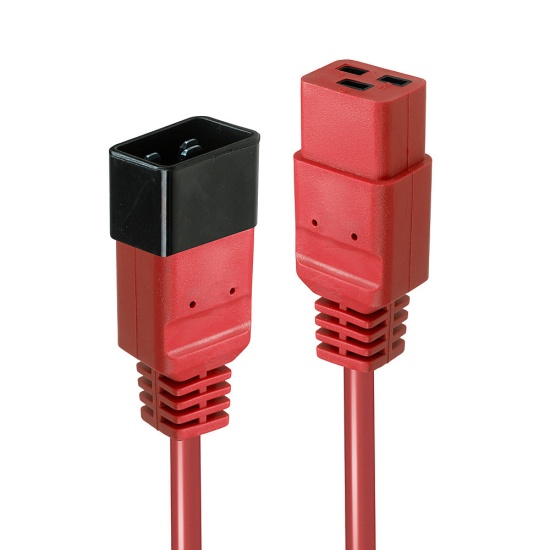

Lindy 2m IEC C19 to C20 Extension, red by Lindy
- Be the first to review
- Item Number: FD3540992
- Part Number: 30124
|
Expected to ship within 12 days of order Shipping within Ireland only € 4.99 -or spend €100.00 to get free shipping |
Key Features
- Connector A: IEC C19
- Connector B: IEC C20
- Cable type: H05-VVF 3G * 1.50mm²
- Colour: Red
See product description
Details
Connectors
- Connector A: IEC C19
- Connector B: IEC C20
- Housing Material:
- A: PVC & PBT
- B: PVC
- Pin Construction:
- A: Brass
- B: Phosphor Bronze
- Pin Plating: Nickel
- Dimensions (approx.) WxDxH:
- A: 34x79x25.7mm (1.34x3.11x1.01in)
- B: 31.3x79x24mm (1.23x3.11x0.94in)
Cable Construction
- Length: 2m (6.56t)
- Colour: Red
- Conductor Material: Copper
- Cable Material: H05VV-F 3G 1.5mm²
- Number of Wires: 3
- Wire Gauge: 1.5mm²
- Jacket Diameter: 8mm (0.31in)
- Jacket Material: PVC
Specifications
- Rated Voltage and Current: 16A/250V
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: CE, RoHS, REACH, California Proposition 65
Purchasing Information
- No.: 30124
- EAN: 4002888301244
This product is also available in other lengths
- 30123 - 1m (3.28ft)
- 30124 - 2m (6.56ft)
- 30125 - 3m (9.84ft)
Specifications
| LENGTH | 2 m |
| CONNECTOR TYPES | Male |
| CONNECTOR TYPE | Female |
