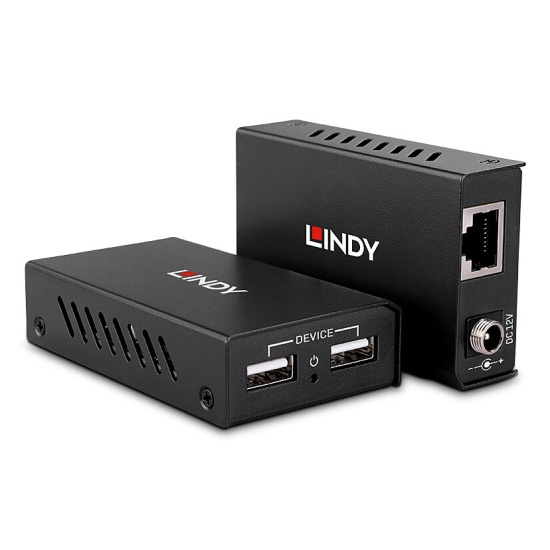

Lindy 100m 2 Port USB 2.0 Cat. 6 Extender by Lindy
- Be the first to review
- Item Number: FD3559648
- Part Number: 43408
Key Features
- Extend two USB 2.0 ports up to 100m using low cost Cat. 6 network cable (not included)
- Bi-directional PoC (Power over Cable) requires a power supply connection from only one side of the installation
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug & Play installation
See product description
Details
Specifications
- USB Standard: USB 2.0
- Supported Bandwidth: 480Mbps
- Maximum Distance: 100m (328.08ft)
- Transmission Medium: Cat.5e/6 or higher network cable
- Chipset: VA6000
- Special Features: Power over Cable; Supports control, bulk, interrupt and isochronous data transfer
Connectors
- Transmitter Input: USB Type B (Female)
- Transmitter Output: RJ45 (Female)
- Receiver Input: RJ45 (Female)
- Receiver Output: 2 x USB Type A (Female)
- Power: 5.5/2.5mm DC socket
Physical Properties
- Dimensions WxDxH: 82x49x20mm (3.23x1.93x0.79in) each
- Housing Material: Metal
- Net Weight: 0.2kg (0.44lb)
- Operating Temperature: 0° - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 12VDC 3A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 200x115x75mm (7.87x4.53x2.95in)
- Gross Weight: 0.6kg (1.32lb)
- Warranty (Years): 2
- Product Compliance: CE, FCC, RoHS & REACH, CP65
Package Contents
- Transmitter unit
- Receiver unit
- 0.9m USB 2.0 A Male to B Male cable
- Multi-Country Power Supply (EU, UK, US & AUS)
- Mounting Brackets
- Lindy Manual
Purchasing Information
- No.: 43408
- EAN: 4002888434089
Specifications
| MAXIMUM TRANSFER DISTANCE | 100 m |
| BANDWIDTH | 0.48 Gbit/s |
| MATERIAL | Metal |
| COLOUR | Black |
