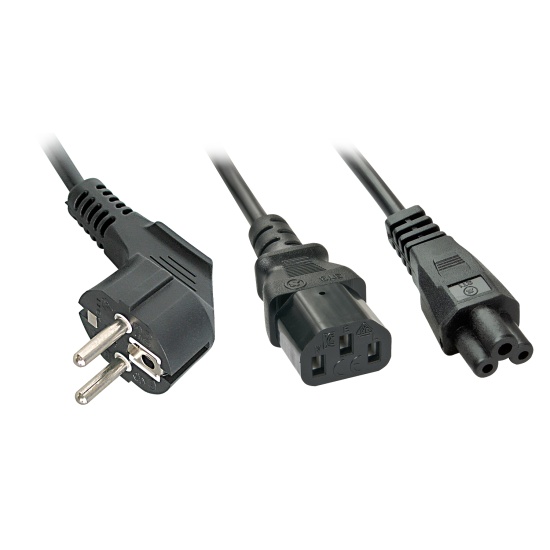

Lindy 30047 power cable Black C13 coupler C5 coupler by Lindy
- Be the first to review
- Item Number: FD3540984
- Part Number: 30047
|
Expected to ship within 12 days of order Shipping within Ireland only € 4.99 -or spend €100.00 to get free shipping |
Key Features
- Y-type power supply cable, plastic, encapsulated
- Connections: Schuko plug to 2 x IEC coupling, 1x C13 cold-plug coupling and 1x C5 (Mickey Mouse, for example for notebook power supply)
- Schuko cord: 1.0mm², approx. 1,8m, cable material H05 VV-F 3G X 1.0mm²
- IEC strands: 1.0 mm², approx. 0.2m, cable material H05 VV-F 3G X 1.0mm²
See product description
Similar Products
-
UK Mains to Figure 8 C7 2m Black Power Cable
IN STOCK
€ 3.97 (incl. VAT) -
Monoprice Power Cable (3-Prong) NEMA 5-15P to IEC 60320 C5 (MickeyMouse)plug- 3m
IN STOCK
€ 4.98 (incl. VAT)
Details
Connectors
- Connector A: Schuko Plug (CEE 7/7 (Type EF)
- Connector B: IEC C13 & IEC C5
- Housing Material:
- A: PVC
- B/C: PVC & PBT
- Pin Construction:
- A: Brass
- B/C: Phosphor Bronze
- Pin Plating: Nickel
- Dimensions (approx.) WxDxH:
- A: 36.5x71x36.5mm (1.44x2.8x1.44in)
- B: 25.6x65x16.5mm (1.01x2.56x0.65in)
- C: 22.8x64x15mm (0.9x2.52x0.59in)
Cable Construction
- Length: 2m (6.56ft)
- Colour: Black
- Conductor Material: Copper
- Cable Material: H05-VVF 3G 1.0mm², H05VV-F 3G 0.75mm²
- Number of Wires: 3
- Wire Gauge: 1.0mm², 0.75mm²
- Jacket Diameter: 6.8mm (0.27in), 6.4mm (0.25in)
- Jacket Material: PVC
Specifications
- Rated Voltage and Current: 10A/250V, 2.5A/250V
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: CE, RoHS, REACH, California Proposition 65
Purchasing Information
- No.: 30047
- EAN: 4002888300476
Specifications
| CONNECTOR TYPES | Female |
| CONNECTOR TYPE | Female |
